Product Details:
|
|
| Brand Name: | TecThane |
|---|---|
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 2pcs |
| Price: | negotiate |
| Packaging Details: | customized |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Moneygram, Western Union, Paypal, Other |
| Supply Ability: | 10000 pcs/momth |
|
Detail Information |
|||
| Product Name: | Wiper Seal | Material: | PU |
|---|---|---|---|
| Color: | Sky Blue | Advantage: | Aging Resistant ,Long Life,Phosphating Treatment |
| Size: | 90 - 104 - 8.4 | Brand: | TecThane |
| Shipment Method: | By Sea, By Air, By Express | Delivery Time: | After Payment Received |
| High Light: | Hydraulic Cylinder Wiper Seal DKB 90 104 8.4,Wiper Seal DKB 90 104 8.4,Replacing Hydraulic Wiper Seal |
||
Product Description
The wiper rings are manufactured with a slightly oversized outer diameter,thus ensuring a secure press fitin the groove after installtion. Any contact of the wiperlip with piston rod eyes or other connecting parts shouldbe avioded.

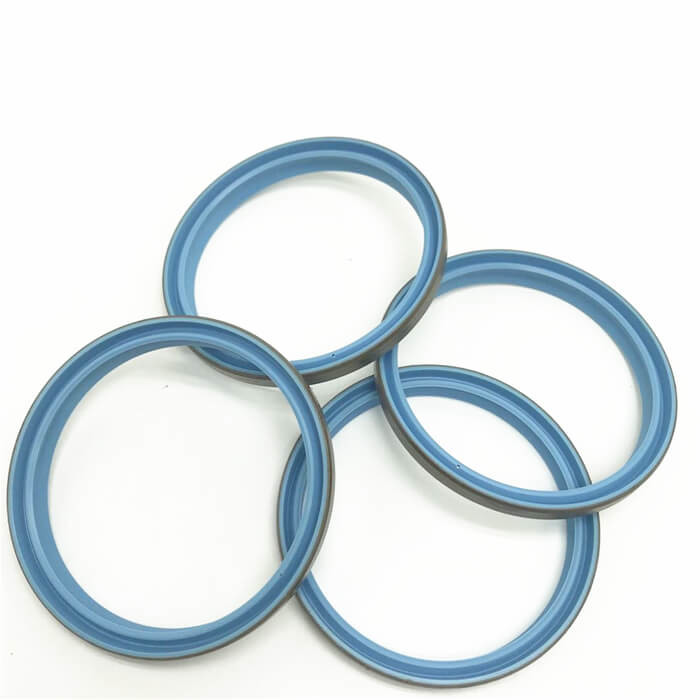

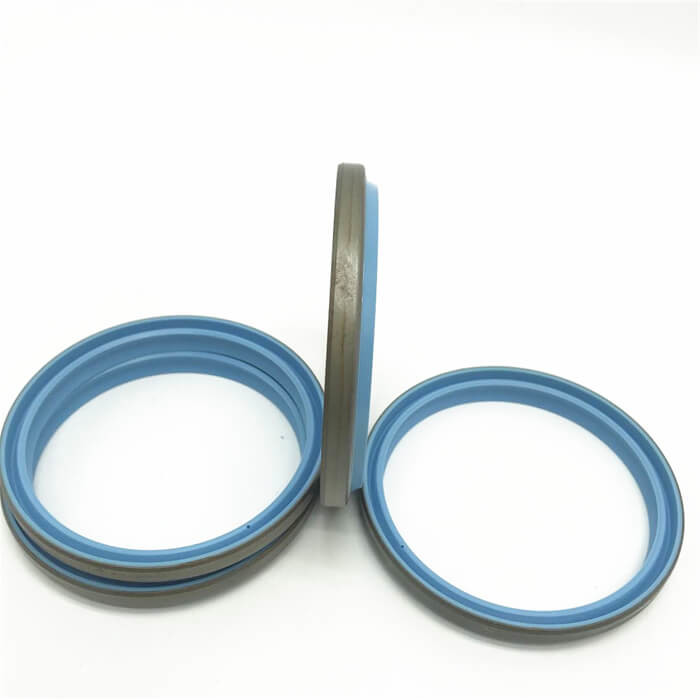

Aging Resistant And Long Life Dustproof Wiper Seal DKB 90 - 104 - 8.4
| Product Name | Wiper Seal DKB |
| Brand | TecThane |
| Size | 90 - 104 - 8.4 |
| Material | PU and metal |
| Advantage |
1,Aging Resistant 2,Long Life 3,Phosphating Treatment 4,Very good wear resistance 5,Excellent dust proof effect 6,Easy installation |
| Technical parameter | 1,Working temperature: -30~ 110℃ 2,Surface speed: ≤1.0m/s 3,Working medium: Hydraulic oils (mineral oil- -based) |
The profile HWG is a double lipped metal bonded wiper with sealing function. High prevention against dust,dirt, grains of sand and metal swarf.
This reduces the risk of scoring caused by contaminants from extemnal sources imbedded in the sliding parts.The excellent wiping effects is achieved bythe specical design of the wiper lip.
The following sizes are supplied:
| 20×32×6/9 | 65×79×8/11 | 110×126×9/12 |
| 25×37×6/9 | 70×84×8/11 | 115×131×9/12 |
| 30×42×6/9 | 75×89×8/11 | 120×136×9/12 |
| 35×47×7/10 | 80×94×8/11 | 125×141×9/12 |
| 40×52×7/10 | 85×99×8/11 | 130×146×9/12 |
| 45×57×7/10 | 90×104×8/11 | 140×160×10/14 |
| 50×62×7/10 | 95×109×8/11 | 150×170×10/14 |
| 55×69×8/11 | 100×114×8/11 | 160×180×10/14 |
| 60×74×8/11 | 105×121×9/12 |
We also supply other seals and seal kits as follows:
Seal Series:
PTB IDI, ZBR IDI, HBY, HBTS, HBTY, PU DKB, Rubber DKB, Common PU DKB, DKBI, SPGW, SPGO, SPGA, SPG, KZT,
RYT, OK seal, WR, ROI, OUY, VA, SPN, BRT, N4W, PU o-ring, Taiwan o-ring, Tapan o-ring, CFW, TCN, TCV, TCZ, HTC,
UN PU IDI, FA DKB, DH DKB, DU Bushing
Seal kit Series:
Cylinder seal kit
Control Valve Seal Kit
Hydraulic Pump Seal Kit
Swing Motor Seal Kit
Travel Motor Seal Kit
Center Joint Seal Kit
Seals-Track adjuster kit
Boxed O-Ring Kit
Core Advantages:
1. With 15 Years of industry experience.
2. Competitive Price.
4. Have a Professional Team to Provide You with Professional Services.
6. Enough Stock,welcome to place order!
6. Trail Order and sample order is accepted.
7. The more products you purchase,the more discount we could offer.
