Product Details:
|
|
| Brand Name: | TecThane |
|---|---|
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 2pcs |
| Price: | negotiate |
| Packaging Details: | customized |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T, Moneygram, Western Union, Paypal, Other |
| Supply Ability: | 10000 pcs/momth |
|
Detail Information |
|||
| Product Name: | Wiper Seal | Material: | PU |
|---|---|---|---|
| Color: | Sky Blue | Advantage: | Aging Resistant ,Long Life,Phosphating Treatment |
| Size: | 50 - 62 - 7.3 | Brand: | TecThane |
| Shipment Method: | By Sea, By Air, By Express | Delivery Time: | After Payment Received |
| High Light: | metal scraper wiper seal 50 62 7.3,scraper seal hydraulic 50 62 7.3,Double Wiper Seal 50 62 7.3 |
||
Product Description

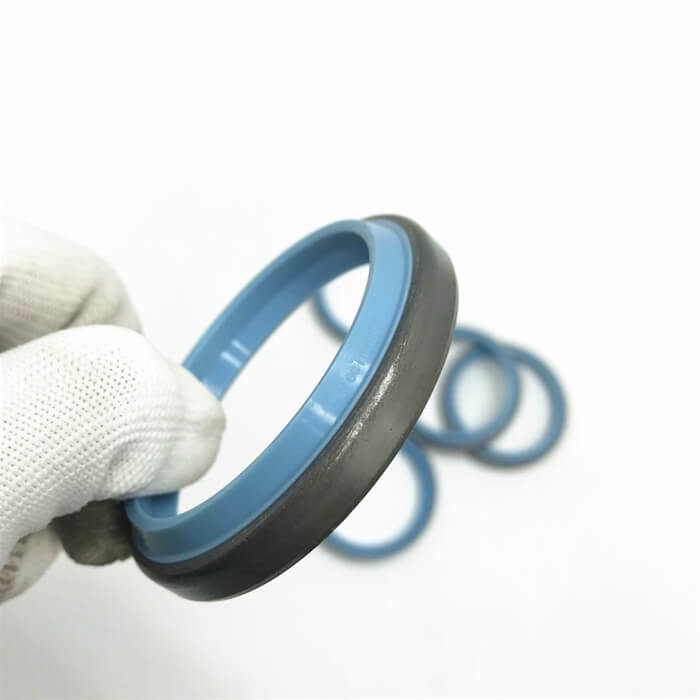

Dustproof Wiper Seal 50 - 62 - 7.3
Wiper Seal is a dust-proof, scraping double dust seal. The lip-shaped metal skeleton dust-proof ring prevents dust, dirt, sand and metal chips from entering, prevents scratches, protects the metal surface of the piston rod, prolongs the service life of the seal, and has a scraping function.
HWG Aging Resistant And Long Life Dustproof Wiper Seal 50 - 62 - 7.3
| Product Name | Wiper Seal DKB |
| Brand | TecThane |
| Size | 50 - 62 - 7.3 |
| Material | PU and metal |
| Color | Sky blue |
| Advantage |
1,Aging Resistant 2,Long Life 3,Phosphating Treatment 4,Very good wear resistance 5,Excellent dust proof effect 6,Easy installation |
| Technical parameter | 1,Working temperature: -30~ 110℃ 2,Surface speed: ≤1.0m/s 3,Working medium: Hydraulic oils (mineral oil- -based) |
| Loading port | Guangzhou, Huangpu |
Installation:
The wiper rings are manufactured with a slightly oversized outer diameter,thus ensuring a secure press fitin the groove after installtion. Any contact of the wiperlip with piston rod eyes or other connecting parts shouldbe avioded.
The following sizes are supplied:
| 20×32×6/9 | 65×79×8/11 | 110×126×9/12 |
| 25×37×6/9 | 70×84×8/11 | 115×131×9/12 |
| 30×42×6/9 | 75×89×8/11 | 120×136×9/12 |
| 35×47×7/10 | 80×94×8/11 | 125×141×9/12 |
| 40×52×7/10 | 85×99×8/11 | 130×146×9/12 |
| 45×57×7/10 | 90×104×8/11 | 140×160×10/14 |
| 50×62×7/10 | 95×109×8/11 | 150×170×10/14 |
| 55×69×8/11 | 100×114×8/11 | 160×180×10/14 |
| 60×74×8/11 | 105×121×9/12 |
Seal Series:
PTB IDI, ZBR IDI, HBY, HBTS, HBTY, PU DKB, Rubber DKB, Common PU DKB, DKBI, SPGW, SPGO, SPGA, SPG, KZT,
RYT, OK seal, WR, ROI, OUY, VA, SPN, BRT, N4W, PU o-ring, Taiwan o-ring, Tapan o-ring, CFW, TCN, TCV, TCZ, HTC,
UN PU IDI, FA DKB, DH DKB, DU Bushing
Seal kit Series:
Cylinder seal kit
Control Valve Seal Kit
Hydraulic Pump Seal Kit
Swing Motor Seal Kit
Travel Motor Seal Kit
Center Joint Seal Kit
Seals-Track adjuster kit
Boxed O-Ring Kit
